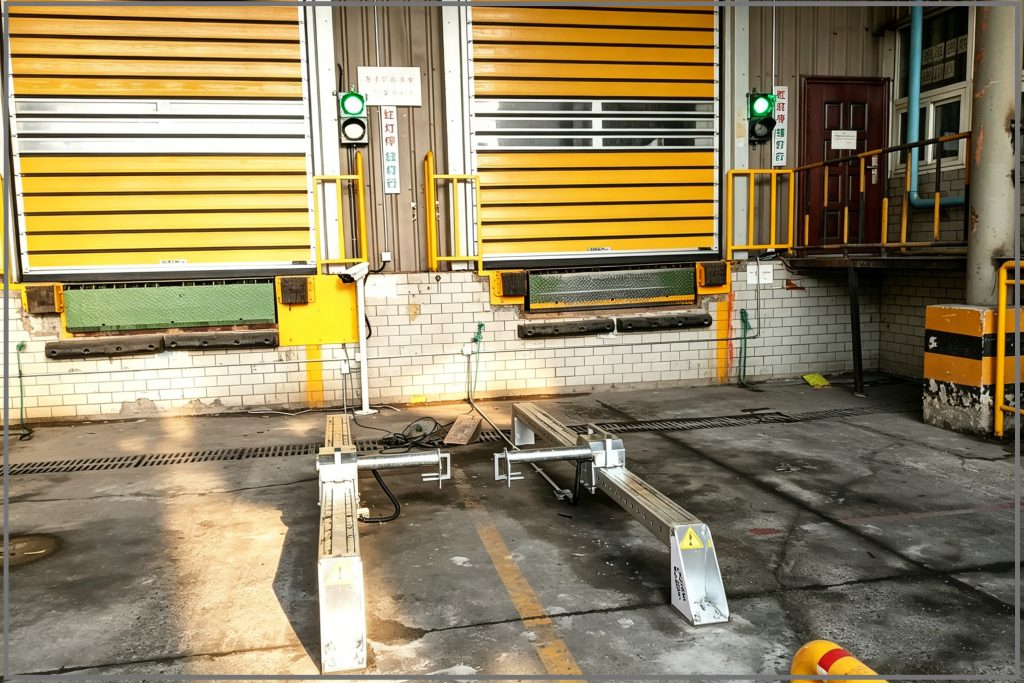

Manual Wheel-Lok Vehicle Restraint

The MWL-2800 Manual Wheel-Lok Vehicle Restraint is a heavy-duty wheel-locking safety device purpose-built for loading docks, warehouses, and logistics stations. This advanced manual wheel-lok vehicle restraint securely clamps truck tires to prevent vehicle creep, premature departure, and accidental movement during loading and unloading. Featuring stable locking, easy operation, wide adaptability, and strong durability, it performs reliably in harsh outdoor environments and is an ideal safety solution for global contractors and distributors.CE certified for global industrial use, this manual wheel-lok restraint eliminates the risks of unsecured trucks at the dock. Its heavy-duty steel construction and corrosion-resistant coating ensure long service life, even in extreme weather conditions. For more loading dock safety solutions, explore our full loading dock equipment range.

Manual Wheel-Lok Vehicle Restraint
Manual Wheel-Lok Vehicle Restraint

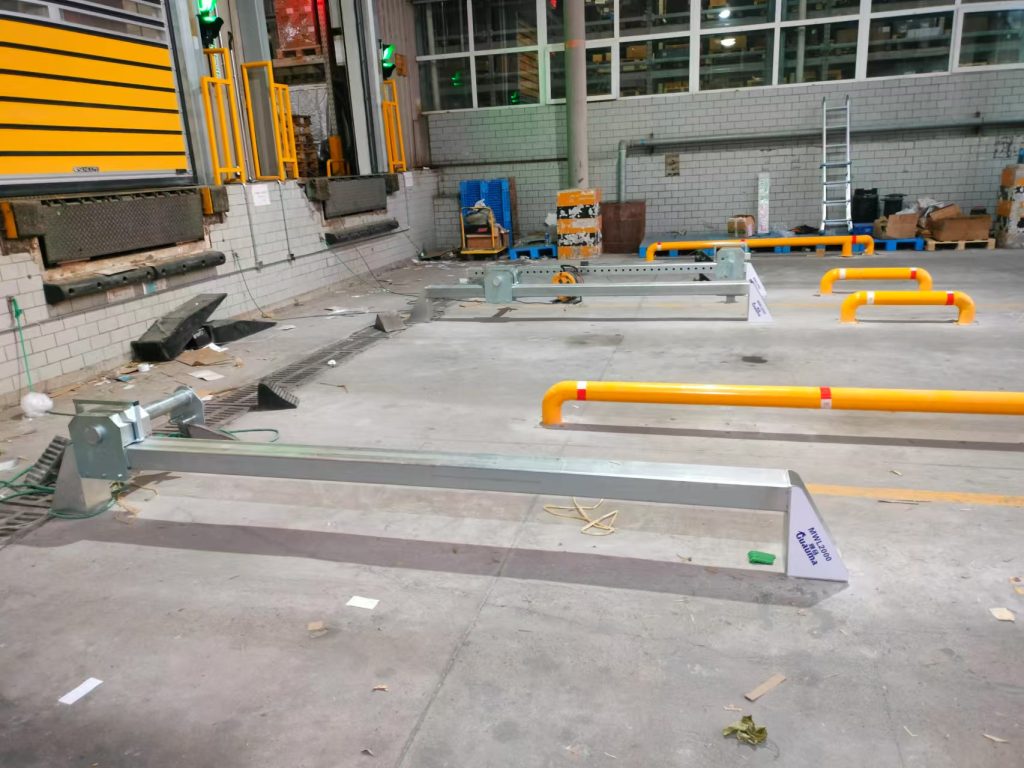

Manual wheel lock device/Key Benefits

✅ Heavy-Duty Wheel Locking
Securely clamps tires to prevent vehicle creep, displacement and early departure.
✅ Simple Manual Operation
Easy to use with no power required, stable and low failure rate.
✅ Wide Vehicle Adaptability
Fits most trucks, trailers and vans with different tire sizes.
✅ Strong Environmental Resistance
Durable steel structure, suitable for outdoor harsh conditions.
✅ High Safety Performance
Effectively avoids forklift falls and dock accidents.
✅ Easy Installation & Maintenance
Minimal maintenance, long service life, cost-effective.
Manual wheel lock device/Key Benefits

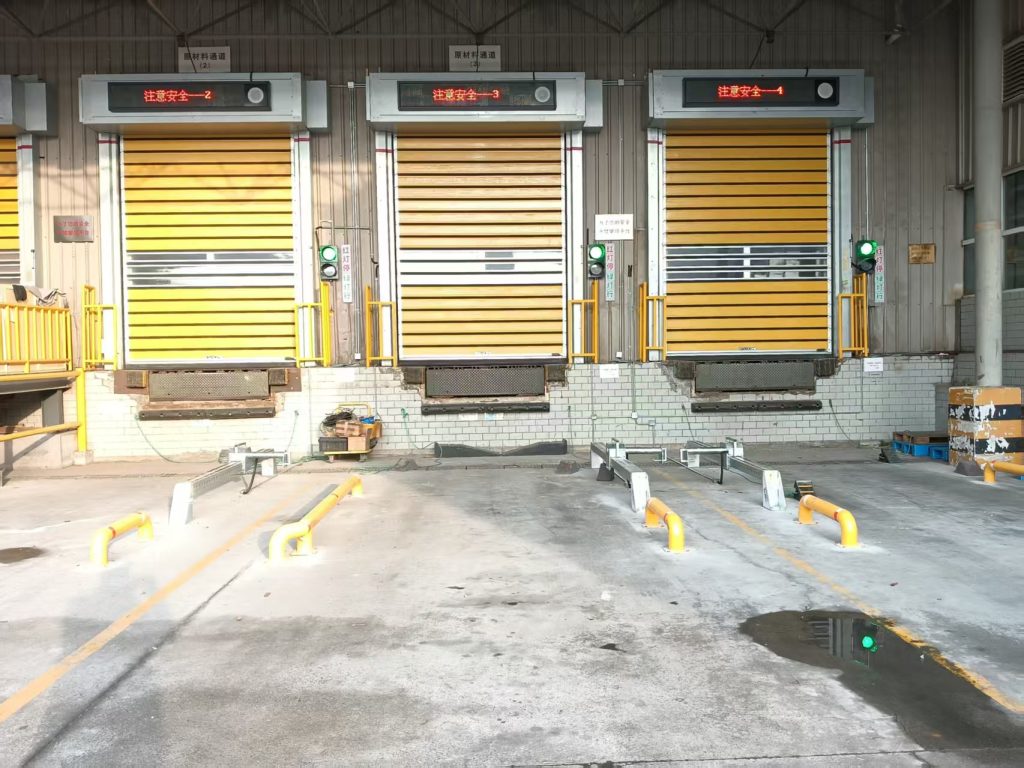

Manual wheel lock device/ Working Principle

Installed fixed on the ground at the dock entrance. The operator manually puts down the lock arm to clamp the truck tire tightly, keeping the vehicle fixed during loading/unloading. After operation, lift the lock arm manually to release the tire. The whole structure is mechanical, safe and reliable.
Manual wheel lock device/ Working Principle

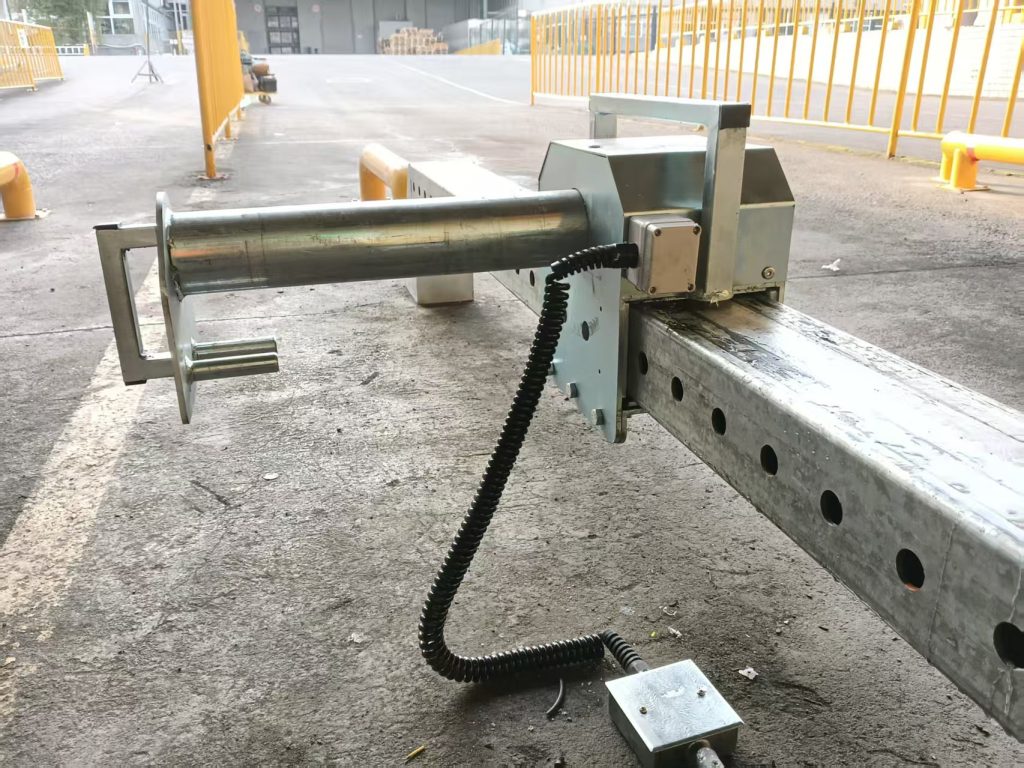

Manual wheel lock device/Application Scenarios

Ideal for loading docks, warehouses, logistics parks, distribution centers, freight stations and outdoor logistics sites with frequent loading/unloading operations. Suitable for standard trucks, box trucks, semi-trailers and various dock types.
Manual wheel lock device/Application Scenarios

/ Technical Specifications

Operation method

Manual operation | Move forward and backward to lock

Locking process

2800mm

Adaptive wheel diameter

600-1200mm

Lock rod specifications

Length: 420mm, Diameter: 80mm

Locking load-bearing

≥100kN (longitudinal), tensile force > 20000KG

Main material

Q235 high-strength steel, (304 stainless steel optional)

Communication module

Wireless communication module / Wired communication module

 signal indicator light

LED signal lights, with a diameter of 200mm

LED light voltage

220V|50HZ

Weight of single

Approximately 150kg

Protection level

IP66 (outdoor rainproof)

service life

≥8 years (normal operating conditions

Reverse guide rail

Length2-4meters (diameter: 114mm, pipe thickness: 5mm)
