Rotate Hook Vehicle Restraint

Our rotate hook vehicle restraint is a heavy-duty, dedicated safety device engineered for logistics dock edges. It secures trucks' rear anti-collision bars with a robust rotating hook, creating a tight, gap-free connection between the truck and dock.

This dock safety solution effectively eliminates critical hazards including truck creep, tipping, sudden departure, and forklift falls, fully protecting personnel, cargo, and equipment during loading and unloading operations.

The unit is built with high-strength steel for long-term industrial use, with simple operation, low maintenance, and high compatibility with most trucks, trailers, and standard loading docks. It is ideal for logistics parks, warehouses, distribution centers, ports, and freight terminals with frequent loading and unloading activities.

For more industry safety guidelines, check the official OSHA loading dock safety standards. You can also view our straight hook vehicle restraint and more cases in our loading dock equipment application scenarios.

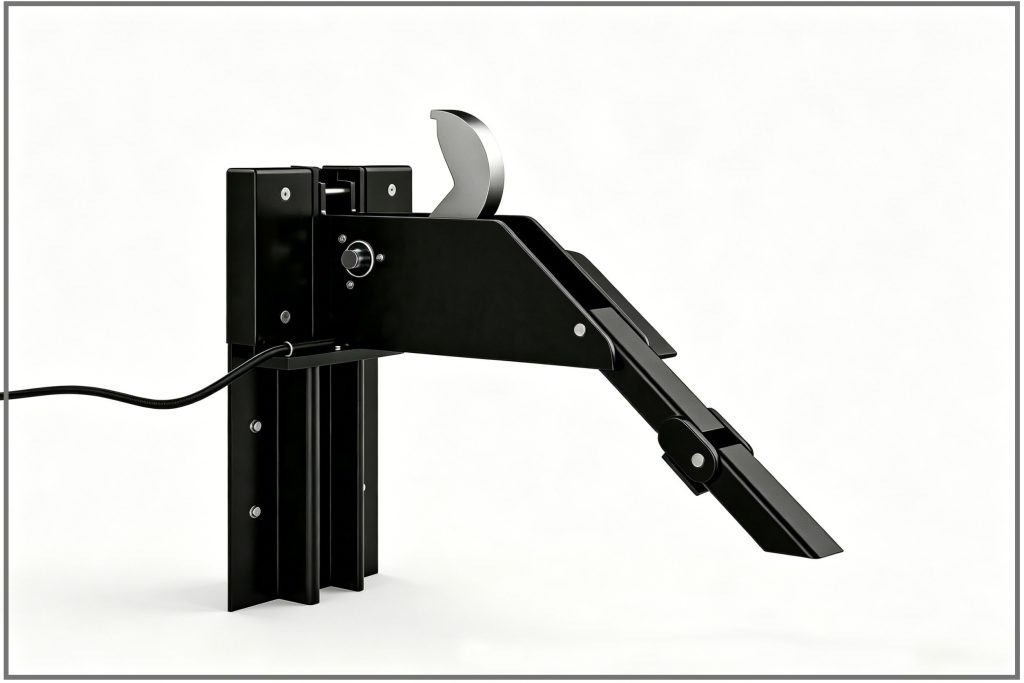

Rotate Hook Vehicle Restraint
Rotate Hook Vehicle Restraint

Rotate Hook Vehicle Restraint Key Benefits

Maximum Dock Safety:Eliminates risks of vehicle movement, tipping, and forklift falls.

Heavy-Duty & Reliable:Strong steel structure for long-term industrial use.

Easy Operation:Simple control, low maintenance, and high stability.

Wide Compatibility:Fits most trucks, trailers, and standard loading docks.

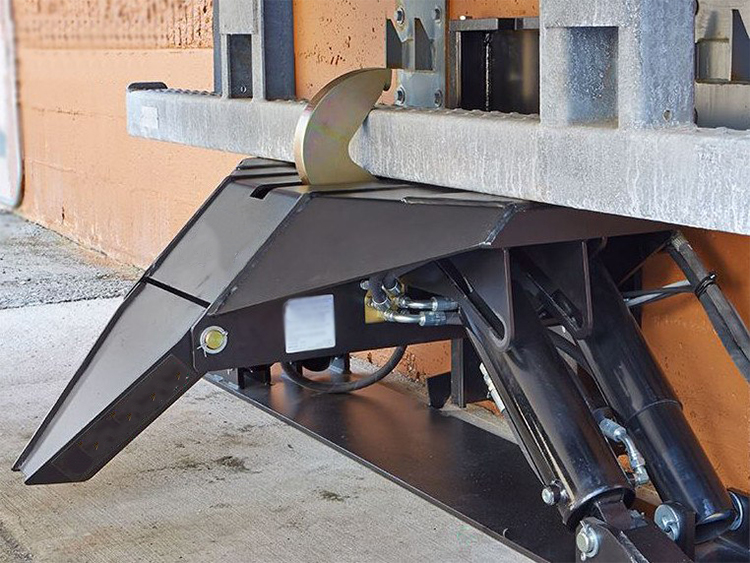

Rotate Hook Vehicle Restraint Key Benefits

Rotate Hook Vehicle Restraint How It Works

The unit is installed at the dock edge. When activated, the rotating hook rises and locks onto the truck’s rear impact bar. It holds the vehicle firmly in place during loading/unloading and releases safely once operations are complete.

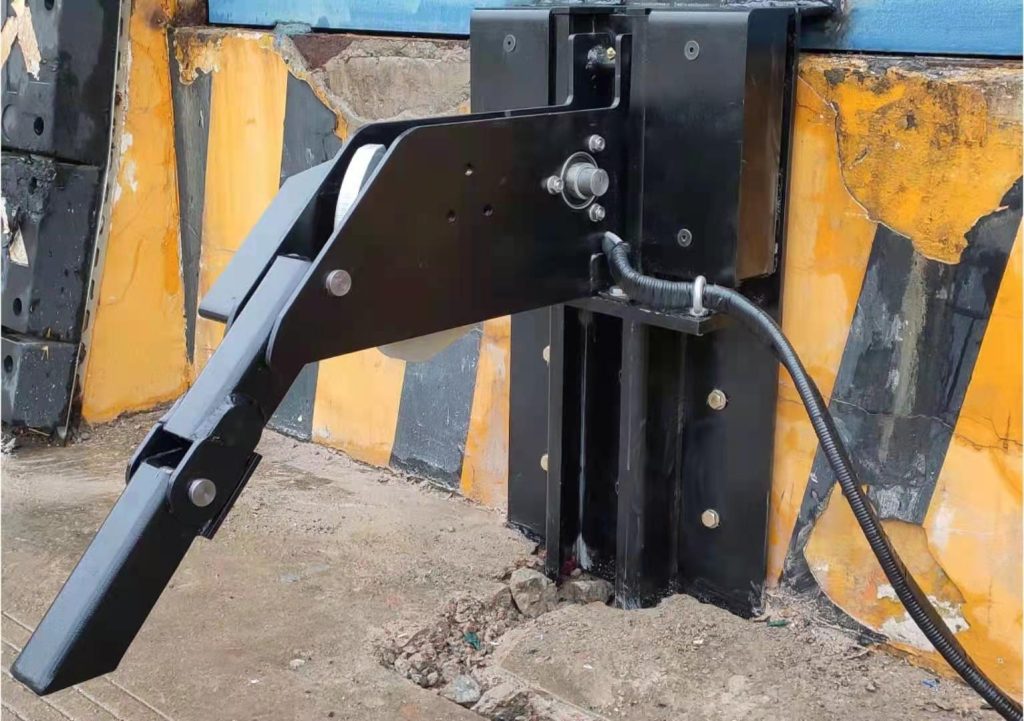

Rotate Hook Vehicle Restraint How It Works

Rotate Hook Vehicle Restraint Application Scenarios

Ideal for logistics parks, warehouses, distribution centers, ports, and freight terminals with frequent loading/unloading activities.

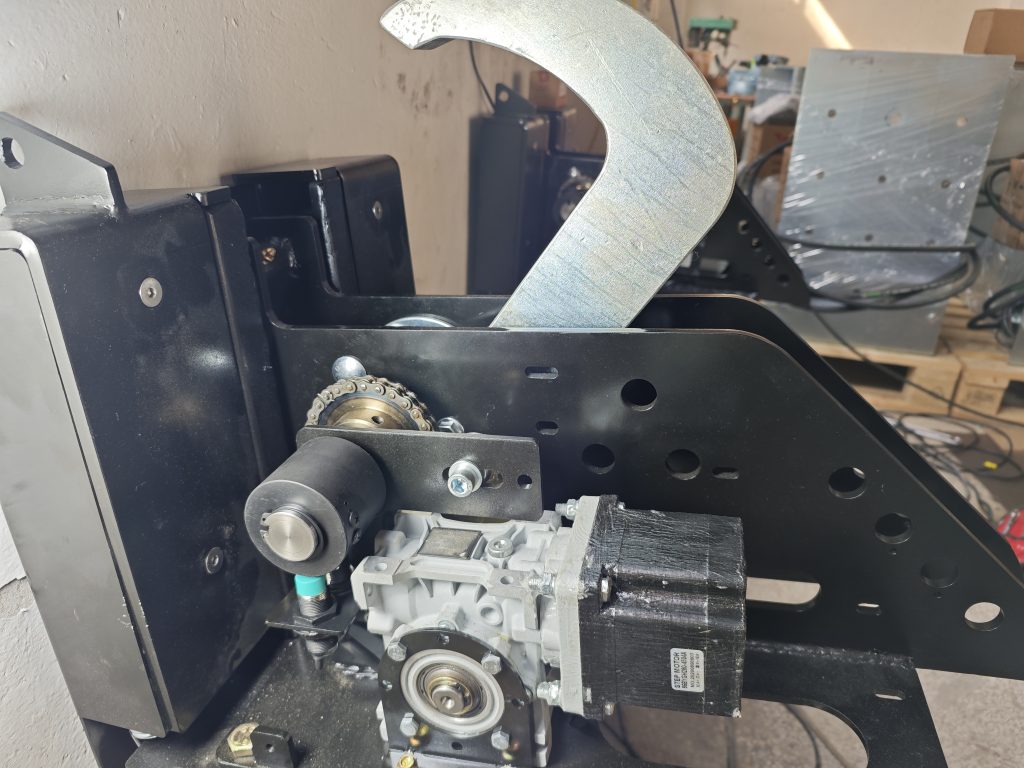

Rotate Hook Vehicle Restraint Application Scenarios

/ Technical Specifications

LSpecification

Value/Standard

Restraint Range

230-760mm Height from the ground, compatible with over 90% of truck models

Rotation Angle

0°-270°, universal rotation design

Locking

Static 8 tons, dynamic 15 tons

Hook Stroke

Extended length ≥ 150mm

Hook Material

Forging of special alloy steel, hot-dip galvanizing treatment

Surface Treatment

Hot-dip galvanizing + nano-ceramic coating; corrosion resistance improved by 50%, suitable for high-salt-fog environments such as ports

levels of protection

IP56, dust and water resistant, suitable for harsh weather conditions

working voltage

24V DC (Safe Voltage)

Drive mode

LogisticsMotor drive (220V/380V AC)

signal light

Internal and external LED indicators (Red/Green)

Alarm Function

Audible and visual alarm (triggered by lock malfunction orexcessive displacement)

control system

PLC programmable system (lock + unlock + interlock )

Installation method

Facade installation (fixed with expansion bolts)

Installation Height

Bottom is about 200mm above the ground
